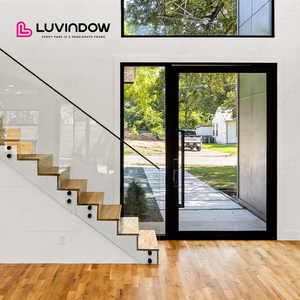

Modern Style Main Entrance Door Heat Insulated Aluminum Double Glazed Glass Pivot Door
ZEKIN Aluminum Entrance Door Aluminum Front Entry Door Exterior Pivot Door Front Security Gate Artificial Intelligence Lock
Hitech Modern American Design House Front Pivot Door Large Entrance Modern Entry Door Security Doors For Houses Exterior
Exterior Gate Door External Door Security Entry Front Door for House External Entrance Exterior Entrance Outdoor Security
KEYMAN Commercial Emergency Door Surface Vertical Bar Lock 3 Point Locking Fire Rated Exit Device Push Bar Lock Panic Bar
Engineering Modern Large-Format Pivot Doors: Physics, Structural Integrity & Thermal Performance
A comprehensive B2B technical guide for real estate developers, structural engineers, facade consultants, and architectural hardware specifiers.
1. The Physics of Heavy-Weight Axle Rotation vs. Traditional Side Hinges
Unlike conventional side-hinged casement doors that transfer torsional shear stress directly to the vertical side jambs, modern architectural pivot doors operate on a vertical axis supported by heavy-duty top and bottom pivot hardware. This fundamental kinematic shift redistributes the dead weight of large door leaves—often weighing between 250 kg and 800 kg—directly into the structural slab floor.
By positioning the pivot axis offset from the frame (typically at 150mm to 300mm from the jamb or customized to a central pivot point), engineers can design dramatic, grand openings reaching heights of 4.5 meters and widths exceeding 2.2 meters without causing frame deflection or hinge sagging over prolonged operation cycles.
Technical Insight: DERKA's floor-recessed hydraulic pivot mechanisms feature integrated 316 stainless steel bearings with dynamic hold-open dampers and adjustable closing speeds, rated for over 500,000 continuous opening cycles under heavy wind-load conditions.
| Performance Parameter | DERKA Architectural Standard Spec | International Standard Compliance |
|---|---|---|
| Structural Aluminum Alloy | Extruded T6 6063 High-Tensile Profile (2.0mm - 3.0mm wall thickness) | GB/T 5237-2017 / ASTM B221 |
| Thermal Isolation Barrier | Polyamide PA66 GF25 Thermal Break Struts (up to 34mm thermal strip) | ISO 14001 / NFRC 100/200 Certified |
| Glazing Specification | Double/Triple Tempered Low-E Insulated Glass Units with Argon Gas Fill | AS/NZS 2208 / EN 12150 / SGCC |
| Wind Load Resistance | Design Pressure (DP) up to +70/-70 PSF (Passes 3500 Pa Structural Pressure) | AS2047 / ASTM E330 |
| Acoustic Insulation | Sound Transmission Class (STC) 38 dB to 44 dB | ISO 717-1 Acoustic Standard |
2. Thermal Break Technology & Weatherproofing Mechanics
Historically, large-format metal doors suffered from poor energy efficiency due to thermal bridging. Modern architectural aluminum pivot doors solve this through multi-chambered thermal break profile engineering. By inserting structural glass-fiber reinforced polyamide (PA66-GF25) strips between the interior and exterior aluminum extrusions, the conductive heat transfer rate (U-Factor) is reduced by up to 65%.
Weatherproofing oversized pivot doors presents unique challenges at the top header and floor threshold where traditional continuous gaskets are interrupted by the rotating axis. High-end custom manufacturing resolves this using automatic drop-down mechanical bottom seals, EPDM perimeter magnetic air-seals, and dual-stage concealed drain channels that prevent water ingress during severe storm conditions.
Global Wholesale & Architectural Procurement Trends (2025–2030)
Key market vectors driving the international demand for custom aluminum pivot doors across North America, Australia, Europe, and the Middle East.
1. Rise of Oversized Modern Front Entrances
Architectural designs in modern residential villas increasingly prioritize double-height foyer entrances. Pivot doors ranging from 3.0 to 5.0 meters in height are becoming the standard specification over traditional double casement doors due to their clean lines and unobstructed panoramic glass views.
Trend Vector: +38% YoY Demand Growth2. AI & Integrated Biometric Access Controls
The integration of smart access technology directly into the door panel or pull-handle profile is accelerating. Modern B2B buyers favor pre-installed 3D biometric facial recognition, fingerprint sensors, encrypted RFID, and Tuya/Zigbee WiFi app control tied directly into building automation systems.
Trend Vector: 62% Smart Specification Rate3. Strict Net-Zero Energy & Carbon Regulations
Building codes such as Australia’s NCC 2022, U.S. NFRC Energy Star 7.0, and Europe's EPBD demand lower overall U-values. Wholesalers and developers are shifting sourcing toward Chinese factories capable of offering verified thermal break test reports and low-emissivity triple glazing.
Trend Vector: Mandatory Low-E IGUsTechnological & Material Evolution in Modern Door Manufacturing
How advance material science, automated CNC fabrication, and surface finishing technologies are reshaping door longevity.
Materiality: Aircraft-Grade Extruded Aluminum vs. Steel
While traditional steel pivot doors provide structural rigidity, they are prone to severe corrosion in coastal salt-air environments and present excessive weight issues. DERKA's 6063-T6 extruded aluminum profiles deliver equivalent structural strength with 60% less weight, zero risk of rust, and far superior precision engineering for CNC hardware mortising.
Surface Finishing: Fluorocarbon PVDF vs. Powder Coating
To meet 30-year exterior weatherability standards, modern pivot doors utilize 3-coat 70% Kynar 500 / PVDF fluorocarbon coatings (AkzoNobel / PPG). This prevents UV fading, chalking, and salt spray degradation, retaining pristine metallic, wood-grain anodized, or ultra-matt black visual finishes across extreme climatic zones.
Why Global Buyers Choose DERKA as Their Primary Pivot Door OEM/ODM Supplier
Headquartered in Foshan, China's premiere architectural aluminum hub, Foshan Derka Architectural Doors & Windows Co., Ltd. operates an integrated, export-dedicated production base.
115,000 m² Automated Manufacturing Facility
Equipped with 9 automated extrusion and profile assembly lines operating 16 hours daily. Our manufacturing workflow utilizes German-engineered CNC double-head cutting saws, automated corner-crimping machines, and robotic glazing lines to ensure precision tolerances within ±0.5mm.
Rigorous 44-Point Quality Assurance Protocol
Every custom pivot door undergoes a 44-step inspection matrix before crate sealing. This includes raw profile wall thickness verification, anodizing film depth check, structural corner pull-testing, air infiltration chamber testing, and 100% operation pre-assembly alignment in factory.
Global Certification Compliance
Products are fully certified for direct importation across key markets: ISO 9001 quality management systems, CE marking for Europe, AS2047 and AS2208 for Australia and New Zealand, and NFRC / Energy Star alignment for North America.
Export Packaging & Project Logistics
Heavy-duty export packing featuring surface protection film, corner rubber guards, impact-resistant foam wrap, and fully sealed fumigated plywood crates clearly labeled by floor, opening number, and project code for seamless site installation.
Frequently Asked Questions by Commercial Buyers & Importers
In-depth technical answers addressing structural engineering, customization options, shipping logistics, and compliance standards.
What maximum dimensions can your factory achieve for custom aluminum pivot doors?
Our Foshan manufacturing facility specializes in single-panel oversized modern pivot doors reaching heights up to 6.0 meters (19.6 feet) and widths up to 2.5 meters (8.2 feet) per leaf. For extreme architectural dimensions, our structural engineering team custom-calculates profile wall thickness, internal steel reinforcement sleeves, and hydraulic pivot bearing ratings to guarantee zero sagging and smooth manual or automated operation.
How do you ensure water tightness and wind resistance on large exterior pivot doors?
We utilize a multi-layered weatherproofing system engineered specifically for pivot mechanics. This includes dual continuous EPDM perimeter gaskets, a dynamic drop-down automatic bottom seal that lowers when the door reaches the closed position, magnetic interlocking jamb seals, and an integrated threshold drain channel system. Our pivot door systems are tested to resist structural wind loads up to 3500 Pa, making them suitable for coastal cyclone and hurricane-prone regions.
Can your pivot doors integrate with smart home automation and AI access systems?
Yes. All DERKA entry and pivot doors can be factory-prewired for motorized multi-point lock systems, electronic strike plates, and smart access hardware. We offer built-in 3D biometric facial recognition sensors, encrypted fingerprint readers, keypad access, and smartphone app control compatible with Control4, Crestron, Tuya, and Zigbee smart building protocols.
What thermal insulation ratings (U-factor & SHGC) can be customized for cold climates?
By combining our multi-chambered thermal break aluminum profiles with 34mm polyamide PA66-GF25 insulation strips and triple-pane Low-E argon-filled glass units, we achieve overall U-factors down to 1.2 W/m²K (approx. U-0.21 BTU/h·ft²·°F). This meets or exceeds strict energy efficiency codes in North America (NFRC/Energy Star), Northern Europe (Passive House guidance), and Southern Australia (AS2047 compliance).
What is the typical production lead time and B2B shipping process for custom orders?
Standard production lead time is 25 to 35 days following shop drawing approval and color sample verification. For large commercial or multi-villa projects, staggered container shipments can be scheduled. All products are packaged in custom-engineered export plywood crates with steel reinforcement to ensure safe ocean freight transit directly to your port of destination or job site.
Do you supply architectural CAD/BIM shop drawings prior to manufacturing?
Absolute transparency and precision are core to our process. Upon receiving your project elevation plans, window schedules, or rough opening dimensions, our in-house engineering department generates comprehensive 2D CAD shop drawings and 3D BIM structural models detailing pivot pin offsets, threshold depth, wall anchorage points, and glass specifications for formal client sign-off prior to extrusion cutting.
