Aluminum Casement Windows
Engineering high-performance thermal break aluminum casement window systems for residential, commercial, and high-rise developments worldwide.
Commercial & Residential Grade Aluminum Casement Windows
Manufactured by Foshan Derka Architectural Doors & Windows Co., Ltd., our aluminum casement windows combine structural robustness with superior thermal insulation. Designed with multi-point locking systems and precision EPDM seals, every sash compresses tightly against the frame to deliver outstanding energy efficiency and weather protection across all climate zones.
Structural Durability
Engineered with high-tensile 6063-T5 aluminum profiles featuring wall thicknesses up to 2.0mm to withstand extreme wind loads up to 5000 Pa.
Thermal Barrier Technology
Integrated polyamide PA66 thermal break strips combined with Low-E insulated glass units significantly lower U-values to under 1.4 W/m²K.
Airtight & Watertight
Multi-stage EPDM weather sealing gaskets prevent water penetration during heavy storms and deliver noise reduction performance up to 42 dB.
Technical Specifications & Performance Ratings
Customized according to architectural shop drawings, regional building codes, and project compliance standards (AS2047, NFRC, CE).
| Technical Feature | Standard Specification | Customized / High-Performance Option |
|---|---|---|
| Profile Material | 6063-T5 Architectural Aluminum Alloy | Thermal Break Polyamide PA66 Strip (24mm - 34mm) |
| Frame Depth | 55mm / 60mm System | 70mm / 80mm / 100mm Heavy-Duty System |
| Glazing Configuration | 5mm + 12Ar + 5mm Double Toughened Glass | Triple Glazing, Low-E, Argon Gas, Laminated Hurricane Glass |
| Hardware System | Premium Domestic Multi-Point Locks | German Siegenia / Hoppe / Custom Heavy-Duty Hardware |
| Surface Coating | AkzoNobel Powder Coating (60-80 microns) | Fluorocarbon (PVDF), Anodized, Architectural Wood Grain |
| Flyscreen Option | High-Density Fiberglass Mesh | 304 Stainless Steel Security Mesh / Invisible Roll Mesh |
| Sound Insulation | 35 dB - 38 dB | Up to 45 dB with Acoustical Laminated Glass |
| Air Infiltration | Level 8 (GB/T 7106-2008 Standard) | Compliant with AS2047 & NFRC Energy Standards |
Engineered Customization for B2B Procurement
Foshan Derka Architectural Doors & Windows Co., Ltd. provides comprehensive engineering support from initial CAD drawings to final ocean shipment packaging.

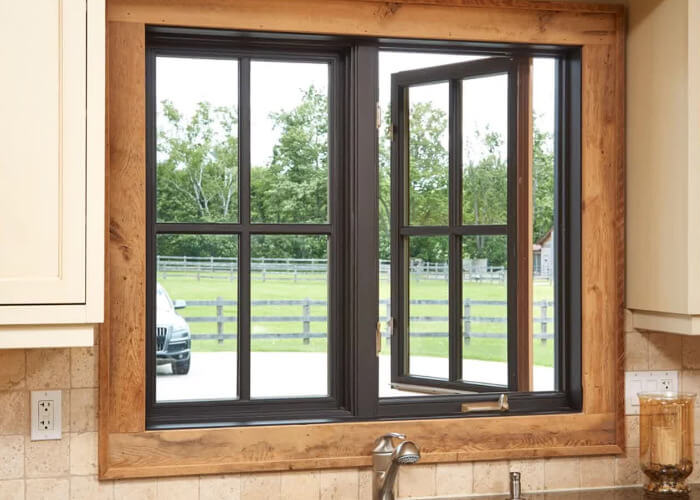

Outward & Inward Swing Configurations
Available in side-hung inswing, side-hung outswing, and combined tilt-and-turn opening modes. Fully compatible with arch designs, fixed side-lights, and transom windows for complex villa facades.
Rigorous Factory Quality Control
Operating across 115,000 m² of manufacturing space, every custom unit undergoes 44 quality inspection steps including corner crimping torque checks, seal integrity tests, and hardware cycle verification.
Frequently Asked Questions for Project Sourcing
Direct insights from our engineering export team at [email protected].
Yes. Our casement windows are engineered with high-density thermal break aluminum profiles, multi-point locks, and insulated glass units configured to comply with NFRC, Energy Star, CSA, and Australian AS2047 standards.
We equip our casement windows with world-renowned hardware solutions including German Siegenia, Hoppe, and HOPO multi-point locking systems, paired with custom powder coating, anodized finishes, and integrated stainless steel mesh screens.
Standard production requires 20-30 days upon shop drawing confirmation. Every window frame is protected with protective film, corner protectors, EPE foam wrapping, and encased in fully sealed export-grade plywood crates labeled by project position.
Plan Your Aluminum Casement Window Package
Contact Foshan Derka Architectural Doors & Windows Co., Ltd. for factory-direct quotes, technical shop drawings, and architectural sample kits.
