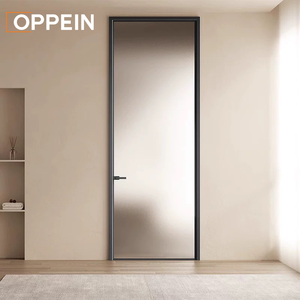

OPPEIN Modern Frosted Glass Interior Door Slim Aluminum Frame Privacy Door For Hotel Apartment Commercial Project Contractor
Exterior Double Front Entry Doors Hurricane Impact Swing Style Aluminum Alloy French Windows and Doors for House

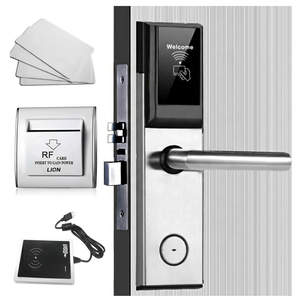

RFID Hotel Door Lock with Key Card Management Hotel Software Keyless Entry 13.56mhz Sensor and Area Control for Hotel Resort

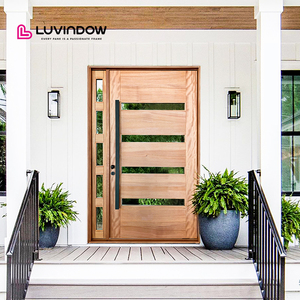

American Wooden Main Door Design Front Doors For Houses Modern TEAK OAK Solid Wood Commercial Entry Door
USA Standard Anti-Break Steel Front Entry Door Sound Insulation Metal Security Door With Multi-Point Lock

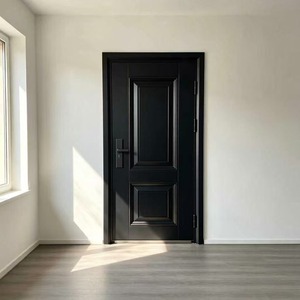

Double Steel Security Entry Door Multi Point Lock Anti Pry Structure Commercial Office Warehouse Outdoor Burglar Proof Door
Engineering Aluminum Folding Doors for Saudi Arabia’s Harsh Desert Climate
Standard architectural glazing fails under Central Saudi Arabia’s extreme environmental stressors. Here is how DERKA custom engineers aluminum folding doors to thrive in Riyadh.
50°C+ Thermal Insulation & Polyamide Barrier
Summer in Riyadh routinely sees direct sunlight pushing frame surface temperatures beyond 65°C. Standard un-insulated aluminum acts as a thermal conductor, overwhelming villa HVAC units. DERKA utilizes multi-cavity PA66 GF25 (25% glass fiber reinforced polyamide) thermal break strips to physically isolate interior and exterior aluminum profiles, cutting heat transfer by up to 68%.
Shamal Sandstorm & Fine Dust (PM2.5) Ingress Mitigation
The infamous Shamal winds blow fine silt into residential openings. DERKA bi-fold door systems integrate a triple-sealed EPDM gasket arrangement combined with continuous high-density woven weather-stripping. Our engineered interlocking panel tongue-and-groove seals prevent micro-dust penetration during severe sandstorms across the Najd plateau.
Traditional Majlis & Indoor-Outdoor Living Transitions
Modern Saudi architecture bridges opulent indoors with private outdoor courtyards and swimming pools. DERKA multi-panel folding doors stack seamlessly to the perimeter, offering up to 90% wide unobstructed openings for modern Majlis entertaining. Heavy-duty stainless steel bottom rollers ensure effortless sliding operation even for 3.5-meter-high glazed panels.
Fenestration Whitepaper: Specifying Heavy-Duty Bi-Fold Doors for Riyadh’s Residential & Commercial Sector
As Saudi Arabia advances its massive infrastructure transformations under Vision 2030—highlighted by gigaprojects such as the Diriyah Gate Development, King Salman Park, and luxury private residential masterplans across Riyadh's Al-Malqa and Al-Nakhil districts—the architectural specifications for exterior glazing systems have tightened dramatically. Aluminum folding doors (bi-fold doors) are high on the demand list among local real estate developers, contractors, and elite home builders due to their ability to merge expansive indoor living spaces with exterior gardens during cooler winter months.
However, importing folding door systems for the Riyadh region without understanding localized physics and compliance leads to rapid seal failure, severe profile warping, thermal glass shattering, and failed Saudi customs clearances via the SABER portal.
1. Diurnal Temperature Fluctuations & Expansion Coefficient Management
Riyadh experiences dramatic diurnal temperature swings—reaching up to 30°C temperature shifts between intense desert afternoons and chilly winter nights. Aluminum has a high linear coefficient of thermal expansion (approx. 23 × 10⁻⁶ /K). On a 6-meter wide bi-fold door assembly, this thermal movement equals several millimeters of expansion and contraction daily.
DERKA addresses this through structural shear-bond thermal barrier technology. By utilizing precision-extruded PA66 GF25 polyamide strips combined with flexible, UV-stabilized structural silicones and floating hinge track guides, our systems absorb thermal movement without placing stress on the glass seals or causing frame distortion.
2. Solar Heat Gain Coefficient (SHGC) & Low-E Glazing Configurations
According to the Saudi Energy Efficiency Center (SEEC) and the updated Saudi Building Code (SBC 601/602), exterior fenestration must strictly control radiant heat transfer. Uncoated glass allows excessive solar heat gain, forcing HVAC systems to operate continuously, driving up electricity consumption.
For the Riyadh market, DERKA recommends double or triple-glazed units configured with 6mm Toughened Solar Control Low-E outer glass + 12A/16A Argon Gas Filled Gap + 6mm Clear Toughened Inner Glass. This configuration achieves an extraordinary performance metric:
- U-Factor: ≤ 1.4 W/m²K (significantly lower than standard 2.8 W/m²K non-thermal break profiles).
- SHGC (Solar Heat Gain Coefficient): ≤ 0.22 (reflecting up to 78% of infra-red heat rays while maintaining high visual light transmittance).
3. Qualicoat Class 2 Fluorocarbon Finishing Against Desert Abrasion
Sandstorms carry quartz micro-particles at high velocities, acting as a natural sandblaster on building facades. Standard electro-static powder coatings quickly micro-scratch, chalk, and fade under relentless UV exposure and sand abrasion.
DERKA applies Qualicoat Class 2 Architectural Powder Coatings and PVDF (Polyvinylidene Fluoride) 3-coat fluorocarbon finishes to all exported aluminum profiles. Tested to endure over 2,000 hours of continuous accelerated weathering and salt spray testing, our coatings resist UV yellowing, color fading, and physical micro-abrasion for over 25 years in Central Saudi Arabia.
Specification Matrix: DERKA Saudi-Spec vs. Standard Export Doors
| Technical Parameter | Standard Export Aluminum Door | DERKA Riyadh-Spec Desert Door | Saudi Code Compliance |
|---|---|---|---|
| Profile Thermal Barrier | Non-Thermal or Low-Grade PVC Strip | PA66 GF25 Multi-Cavity Polyamide | SEEC Compliant |
| Coating & UV Rating | Standard Qualicoat Class 1 | Qualicoat Class 2 / PVDF Fluorocarbon | UV Grade A |
| Glazing Spec (SHGC) | SHGC ~ 0.50 (High Heat Ingress) | Double/Triple Low-E (SHGC ≤ 0.22) | SBC 601 / 602 |
| Air & Sand Tightness | Single EPDM Rubber Seal | Triple Continuous EPDM + Brush Gaskets | Sandstorm Proof |
| Track & Roller Capacity | 100 kg / Panel Nylon Wheels | 300 kg / Panel Stainless Steel Heavy-Duty | Heavy Duty Load |
| Customs Clearance | Basic Commercial Invoice | SABER Portal Registration & SASO Testing | 100% Guaranteed |
Why Saudi Importers & Contractors Trust DERKA
Operating a massive manufacturing ecosystem in Foshan, China—engineered to handle complex global export projects seamless from shop drawings to delivery dry port.
115,000 m² Manufacturing Facility
Foshan Derka Architectural Doors & Windows Co., Ltd. operates 9 automated production lines, running 16 hours daily with 700+ skilled personnel. Our massive capacity ensures large-scale villa developments in Riyadh receive orders on time without delivery bottlenecks.
44-Point Quality Inspection Protocol
Every single folding door assembly undergoes 44 strict quality check points—including raw aluminum profile wall thickness audits, CNC corner joint crimping precision, powder coating micron thickness verification, air/water pressure chamber testing, and pre-packing dry assembly checks.
International Certification Ready
Our aluminum doors and windows carry certified test reports for ISO 9001, CE, AS2047, CSA, and NFRC standards. We supply full technical documentation needed by Saudi engineering consultancies to grant project sign-off.
Custom Engineering & CAD/BIM Support
Send us your architectural elevation drawings or opening schedules. DERKA engineers prepare detailed 2D/3D CAD shop drawings for your approval before extrusion cutting, ensuring 100% dimensional alignment with on-site structural openings.
Export Crating & Container Optimization
Frames are protected with thick scratch-resistant film, heavy foam corner guards, and sealed into export-grade steel-belted wooden crates. Every crate is clearly tagged with project code, floor level, and door position number to streamline on-site Riyadh installation.
Dedicated Middle East Logistics Expertise
With established sea freight routes to King Abdulaziz Port in Dammam and Jeddah Islamic Port, plus inland transit handling to Riyadh Dry Port, DERKA manages your supply chain under CIF or DDP terms with complete SABER certification assistance.
Frequently Asked Questions by Saudi Buyers & Contractors
Essential guidance on importing aluminum folding doors from China to the Riyadh market.
All architectural doors and windows exported to Saudi Arabia must comply with technical regulations issued by SASO (Saudi Standards, Metrology and Quality Organization). DERKA assists buyers by issuing product test reports and factory quality certificates required to register the Product Certificate of Conformity (PCoF) and Shipment Certificate of Conformity (SCoF) on the SABER online platform prior to container dispatch.
For Riyadh’s central desert zone, we strongly recommend a minimum profile depth of 75mm to 80mm featuring a PA66 GF25 polyamide thermal strip with a width of 24mm or greater. Paired with double-pane Low-E glass (6mm + 16Ar + 6mm), this setup delivers optimal thermal insulation, meeting Saudi Building Code energy conservation standards.
Our desert folding doors utilize heavy-duty flush or weather-stepped threshold tracks equipped with integrated stainless steel guide channels and concealed weep-hole drainage systems. The design channels fine sand dust out of the track groove while allowing quick discharge during rare, heavy winter rainstorms in Riyadh.
Once shop drawings and color samples are approved, manufacturing takes approximately 25 to 30 days at our Foshan facility. Ocean transit from Shenzhen/Guangzhou ports to Dammam or Jeddah ports typically takes 18 to 22 days, followed by 3-5 days for custom clearance and inland transit to Riyadh dry port.
Yes. Our reinforced structural aluminum profiles can achieve individual sash panel heights up to 3,500mm and widths up to 1,100mm per panel. Total folding door opening widths can extend up to 12 meters with a 6+6 panel bi-parting configuration.
We provide a 10-year warranty on aluminum profile structural integrity and Qualicoat powder coating, a 5-year warranty on insulated glass units against seal failure/fogging, and a 3-year warranty on heavy-duty stainless steel hardware mechanisms under normal operational maintenance.
Ready to Import High-Performance Folding Doors for Your Riyadh Project?
Send us your architectural elevations, door schedules, or project dimensions. Our senior fenestration engineers will provide shop drawings, thermal calculations, and factory-direct pricing within 24 hours.
